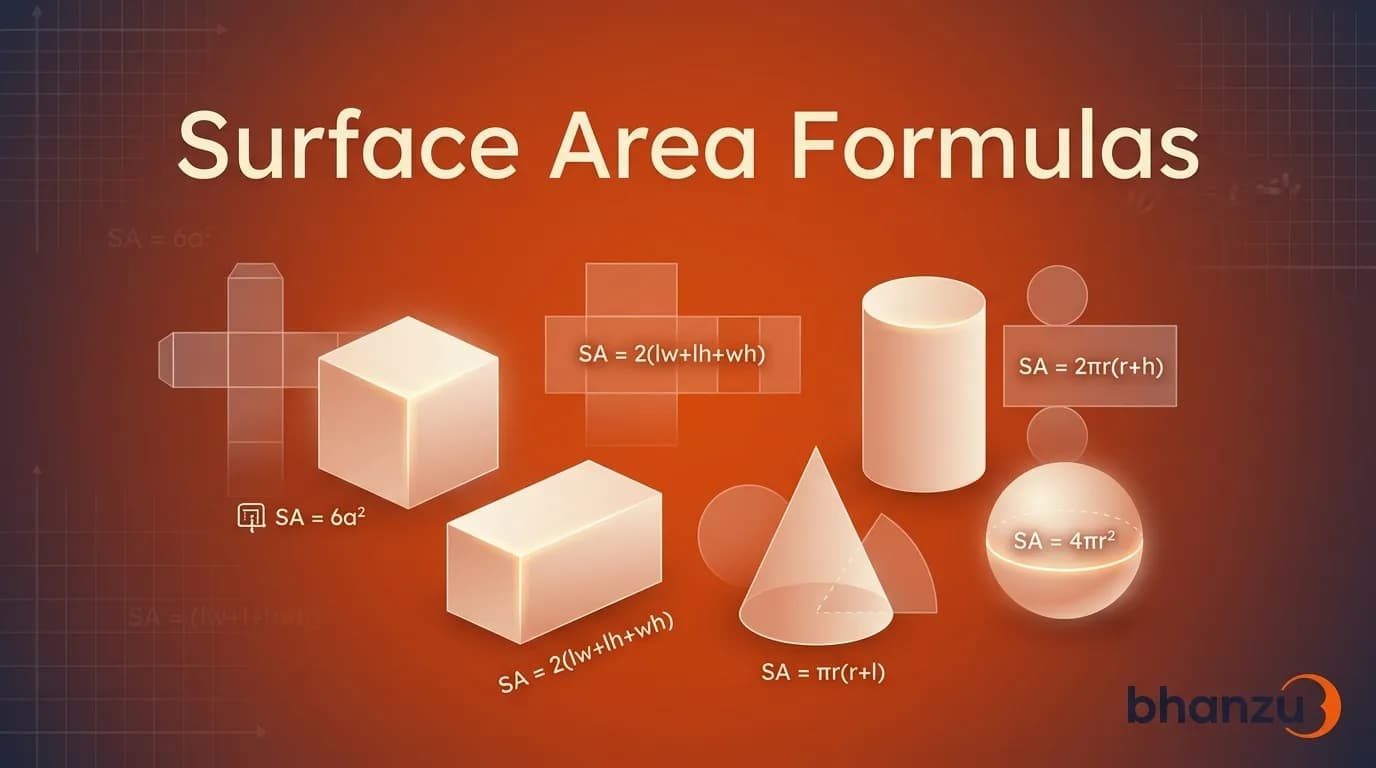

Surface Area Formulas: All 3D Shapes Covered

What Surface Area Means

Surface area is the total area of all the outer faces of a three-dimensional object. If you could peel the shape and lay it flat, surface area is the area of that flat shape — its net.

Two distinctions matter:

• Total Surface Area (TSA) — every face, including bases.

• Lateral Surface Area (LSA) or Curved Surface Area (CSA) — every face except the bases. LSA is used for prisms and pyramids; CSA is used for cylinders, cones, and other curved shapes.

Surface area is always in square units — cm², m², in² — never cubic. Cubic units are for volume.

All Surface Area Formulas - Comparison Table

Slant height ($l$) is the distance from the apex of a cone or pyramid down the slope to the edge of the base — not the vertical height. For a cone, $l = \sqrt{r^2 + h^2}$.

Why Every Formula Has The Form It Has

Each formula above looks different on the page, but the logic is the same: unfold the shape into a flat net, find the area of each flat piece, add them up. Once you've seen this once, none of the formulas need memorising in isolation.

• Cube has 6 identical square faces, each with area $a^2$. Add them up: $6a^2$.

• Cuboid has 3 pairs of rectangles: two of size $l \times b$, two of $b \times h$, two of $l \times h$. Total: $2(lb + bh + lh)$.

• Cylinder unrolls into two circles (top and bottom, each $\pi r^2$) and one rectangle (the curved side, with width $2\pi r$ and height $h$). Total: $2\pi r^2 + 2\pi r h = 2\pi r(r + h)$.

• Cone unfolds into one circle (base, $\pi r^2$) and a curved sector that flattens into a "pizza slice" with area $\pi r l$. Total: $\pi r^2 + \pi r l = \pi r(r + l)$.

• Sphere is the unusual one — it cannot be unfolded into a flat net without distortion. Archimedes proved its surface area equals the curved surface of the cylinder that just contains it: $4\pi r^2$.

• Hemisphere is half a sphere ($2\pi r^2$ curved) plus its circular flat lid ($\pi r^2$). Total: $3\pi r^2$.

The pattern repeats for prisms and pyramids — count the faces, find each area, sum.

Worked Examples of Surface Area

Example 1: A closed cardboard box measures 20 cm × 15 cm × 10 cm. How much cardboard does it use?

Identify values: $l = 20$, $b = 15$, $h = 10$.

Apply the cuboid TSA formula:

$\text{TSA} = 2(lb + bh + lh)$

$\text{TSA} = 2(20 \cdot 15 + 15 \cdot 10 + 20 \cdot 10)$

$\text{TSA} = 2(300 + 150 + 200)$

$\text{TSA} = 2(650) = 1300$

Final answer: 1300 cm² of cardboard.

Example 2: A cylindrical water tank has radius 1.4 m and height 3 m. Find the total surface area. (Use $\pi = \frac{22}{7}$.)

Identify values: $r = 1.4$, $h = 3$.

Apply the cylinder TSA formula:

$\text{TSA} = 2\pi r(r + h)$

$\text{TSA} = 2 \cdot \frac{22}{7} \cdot 1.4 \cdot (1.4 + 3)$

$\text{TSA} = 2 \cdot \frac{22}{7} \cdot 1.4 \cdot 4.4$

$\text{TSA} = \frac{271.04}{7} \cdot 2 \approx 38.72$

Final answer: 38.72 m².

Example 3: A cone has radius 6 cm and height 8 cm. Find its total surface area. (Use $\pi = 3.14$.)

First find the slant height:

$l = \sqrt{r^2 + h^2} = \sqrt{36 + 64} = \sqrt{100} = 10$

Apply the cone TSA formula:

$\text{TSA} = \pi r(r + l)$

$\text{TSA} = 3.14 \cdot 6 \cdot (6 + 10)$

$\text{TSA} = 3.14 \cdot 6 \cdot 16 = 301.44$

Final answer: 301.44 cm².

A common rusher's instinct here is to use $h$ instead of $l$ in the cone formula and report $\pi r(r + h)$. That gives 263.76 — close enough to feel right, far enough to be wrong on every problem of this type. The slant height is non-negotiable for cones and pyramids.

Mathematicians & History Behind The Concept

Two more figures shaped the surface area work students see today:

• Euclid (c. 300 BCE) — Elements Book XII gave the first systematic treatment of areas of solid figures.

• Bonaventura Cavalieri (1598–1647) — his "method of indivisibles" let mathematicians find surface areas of curved shapes by stacking infinitely thin slices, which later became calculus.

Common Mistakes To Avoid

1. Confusing surface area with volume. Students compute $V$ when the problem asks for TSA, or vice versa.

Where it slips in: "How much wrapping paper" sounds like the same kind of question as "how much space inside" — but they are different shapes of answer. Wrapping paper is surface; space inside is volume.

Don't do this: Use $\pi r^2 h$ when the question asks for paint, paper, fabric, or coating.

The correct way: Read the question once for what it is asking. Surface = covering the outside (square units). Volume = filling the inside (cubic units).

2. Forgetting the base when "total" is asked.

Where it slips in: For a cone, students often compute $\pi r l$ (the curved surface) and stop. For a cylinder, $2\pi r h$ alone. The question asked for total.

Don't do this: Stop at the curved part when TSA is requested.

The correct way: Total = curved + base(s). For a cone, add $\pi r^2$. For a cylinder, add $2\pi r^2$ (two bases).

3. Using vertical height ($h$) where slant height ($l$) is required.

Where it slips in: The cone and pyramid formulas need $l$ — the distance from the apex along the slope. Many students plug in $h$ because it is given more directly.

Don't do this: Use the height that runs straight down for $l$ in cone or pyramid TSA formulas.

The correct way: Compute the slant height first: for a cone, $l = \sqrt{r^2 + h^2}$. For a square pyramid, $l = \sqrt{(a/2)^2 + h^2}$.

4. Reporting the answer in cubic units instead of square units.

Where it slips in: Out of habit. The student finishes the calculation, writes the number, and adds cm³ because the shape is 3D.

Don't do this: Surface area is never cubic. Volume is cubic.

The correct way: Surface area units are always squared — cm², m², in². If the dimensions were in cm, the answer is in cm².

Where These Formulas Show Up Beyond School

Surface area is not just a textbook quantity. Architects use it to estimate paint, cladding, and insulation costs for entire buildings. Aerospace engineers use it to compute the heat-shield surface area of re-entry capsules — too little and the craft burns; too much and it weighs too much to launch.

Pharmacologists use the surface area of the human body (formulae by Du Bois and Mosteller) to compute correct chemotherapy doses for individual patients. The formulae you learn for cube and cylinder are the same algebra that, scaled up, decides budgets, lives, and missions.
